Cylindrical lenses

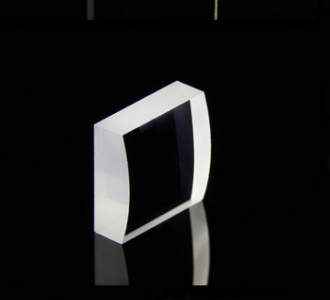

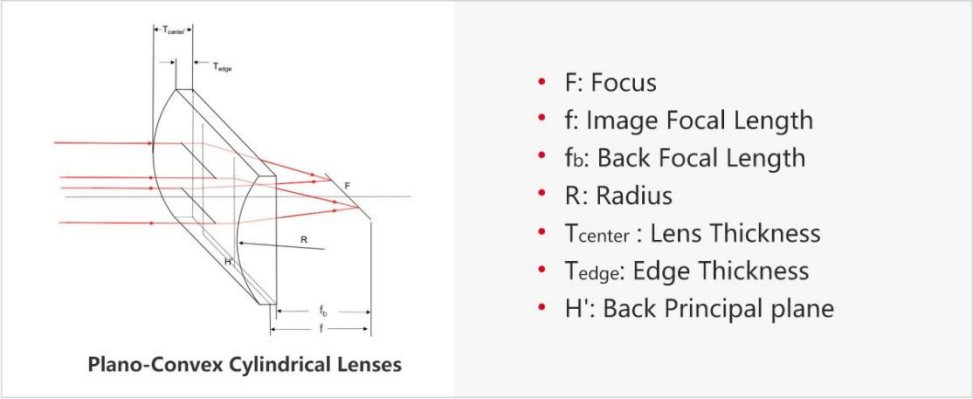

A cylindrical lens, including plano convex, plano concave, plano convex round, plano concave round types, is a lens that focuses light into a line instead of a point, as a spherical lens does. It converges or diverges the image in the direction perpendicular to this line and leaves the image unaltered in the direction parallel to its cylindrical axis (in the tangential plane).
Details
Applications
Optical spectrometers, Holography, Laser projection
Customization Parameters
Specification | Common precision | High precision |
Diameter | 3mm~300mm or larger | |
Material | K9, BK7, FS, UVFS, CaF2, ZnSe, Si, Ge; | |
Diameter tolerance | +0.0/-0.2 mm | +0.0/-0.1 mm |
TC tolerance | ± 0.3 mm | ± 0.1 mm |
Clear aperture | >85% | >90% |
Surface quality | 60-40 S-D | 40-20, 20-10 S-D |
Surface flatness | 1λ@632.8nm | 1/4 λ @632.8nm |
Centration | ±3 arc min | ±1 arc min |
Note: All dimensions & coatings customizable upon request.
